Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 2.05 — 2.1 GeV |
|

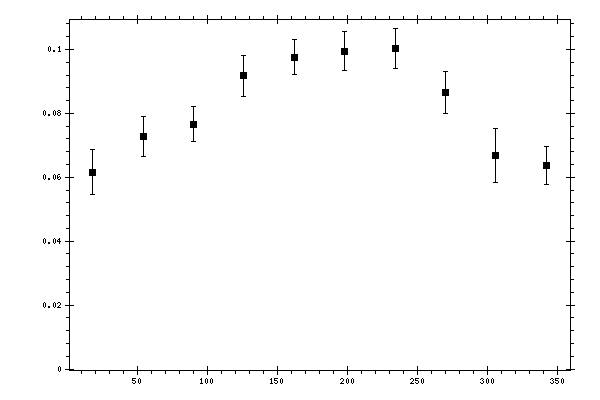

Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0615984 | 0.00710612 | 0.00760138 |
| 54 | 0.0727446 | 0.00627328 | 0.0122821 |
| 90 | 0.0766812 | 0.0054883 | 0.00808151 |
| 126 | 0.0918029 | 0.00643215 | 0.00821365 |
| 162 | 0.0976152 | 0.00548836 | 0.00735563 |
| 198 | 0.0994574 | 0.00609569 | 0.00803585 |
| 234 | 0.100361 | 0.0062799 | 0.0089411 |
| 270 | 0.0864821 | 0.00659828 | 0.00733197 |
| 306 | 0.06694 | 0.00842778 | 0.01040868 |
| 342 | 0.0637074 | 0.00596956 | 0.01560507 |
