Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 6 — 7 GeV2 |
|---|---|
| W : | 2.05 — 2.1 GeV |
|

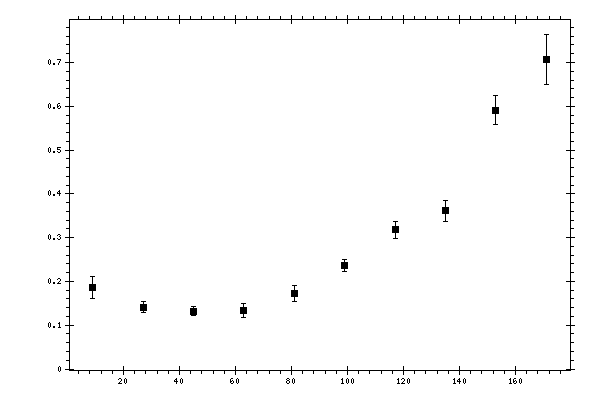

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.185669 | 0.0245299 | 0.03280817 |
| 27 | 0.141142 | 0.0120646 | 0.01975397 |
| 45 | 0.1323 | 0.0102129 | 0.01798549 |
| 63 | 0.133717 | 0.0151412 | 0.01638173 |
| 81 | 0.172682 | 0.017511 | 0.01552356 |
| 99 | 0.236795 | 0.0143948 | 0.0248626 |
| 117 | 0.31773 | 0.0185697 | 0.04364497 |
| 135 | 0.361567 | 0.0242664 | 0.03410507 |
| 153 | 0.591462 | 0.0330723 | 0.04916673 |
| 171 | 0.707796 | 0.0569482 | 0.06543117 |
