Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.4 — 1.45 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

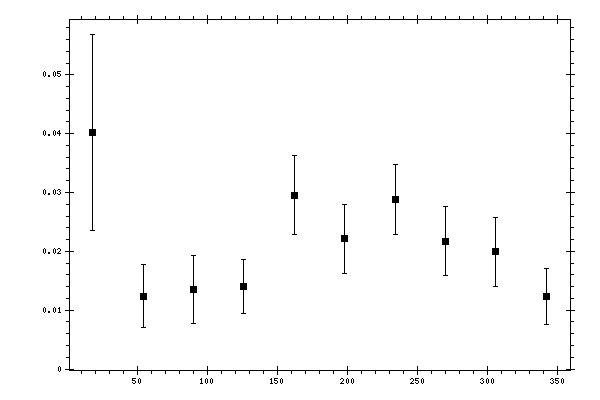

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0402234 | 0.0166114 | 0.00950904 |
| 54 | 0.0123493 | 0.00536194 | 0.0022224 |
| 90 | 0.0135427 | 0.00578106 | 0.00211244 |
| 126 | 0.0140204 | 0.00453784 | 0.0020646 |
| 162 | 0.029557 | 0.0067442 | 0.00488039 |
| 198 | 0.0221391 | 0.00586792 | 0.00265452 |
| 234 | 0.0288063 | 0.00599511 | 0.00295181 |
| 270 | 0.0217165 | 0.00587408 | 0.0033427 |
| 306 | 0.0198938 | 0.00579599 | 0.00362128 |
| 342 | 0.0123428 | 0.00479624 | 0.00599736 |
