Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.4 — 1.45 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

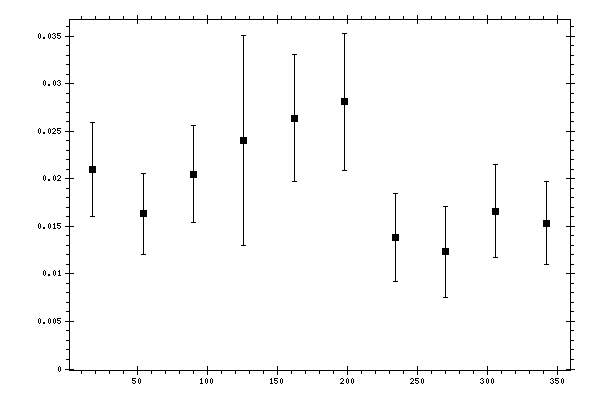

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.020982 | 0.00493451 | 0.00352669 |
| 54 | 0.0163158 | 0.00427793 | 0.00301378 |
| 90 | 0.02047 | 0.00510389 | 0.00350628 |
| 126 | 0.0240224 | 0.0110806 | 0.00671807 |
| 162 | 0.0264054 | 0.00672543 | 0.00773864 |
| 198 | 0.0281212 | 0.00720791 | 0.0050884 |
| 234 | 0.0138242 | 0.00460075 | 0.00333416 |
| 270 | 0.0123213 | 0.00475512 | 0.00242753 |
| 306 | 0.0166188 | 0.00492381 | 0.00307429 |
| 342 | 0.0153513 | 0.00434835 | 0.00310336 |
