Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcbn/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.4 — 1.45 GeV |
|

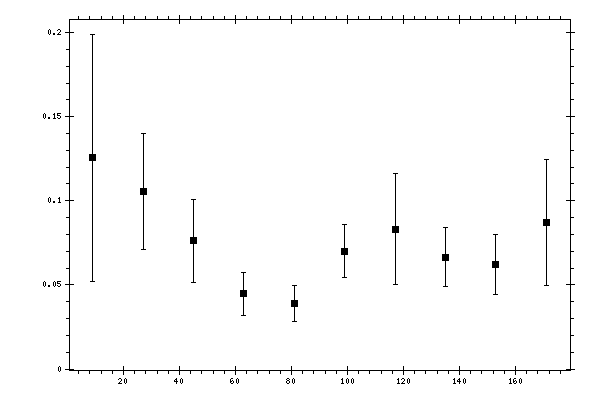

Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcbn/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.125632 | 0.0733232 | 0.03061727 |
| 27 | 0.105585 | 0.0342665 | 0.02221341 |
| 45 | 0.0761861 | 0.0248771 | 0.01149263 |
| 63 | 0.0447143 | 0.0127887 | 0.01023536 |
| 81 | 0.0388719 | 0.010795 | 0.00572479 |
| 99 | 0.0700595 | 0.0158975 | 0.01065396 |
| 117 | 0.0831168 | 0.0329672 | 0.01242608 |
| 135 | 0.0665151 | 0.0175874 | 0.01118366 |
| 153 | 0.0621946 | 0.0176101 | 0.0159358 |
| 171 | 0.0871543 | 0.0376028 | 0.03437526 |
