Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.45 — 1.5 GeV |
|

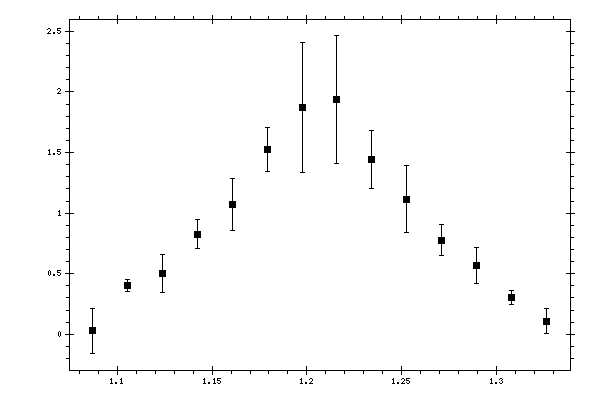

Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.08704 | 0.0294654 | 0.184359 | 0.02421574 |
| 1.10544 | 0.400587 | 0.0500002 | 0.06830831 |
| 1.12384 | 0.500384 | 0.154637 | 0.08329941 |
| 1.14224 | 0.827885 | 0.120221 | 0.12577739 |
| 1.16064 | 1.06952 | 0.216023 | 0.13479922 |
| 1.17904 | 1.52508 | 0.180904 | 0.18685841 |
| 1.19744 | 1.87071 | 0.535475 | 0.3086659 |
| 1.21584 | 1.93625 | 0.526335 | 0.31927854 |
| 1.23423 | 1.4439 | 0.241799 | 0.18225255 |
| 1.25263 | 1.11372 | 0.275318 | 0.14230371 |
| 1.27103 | 0.777947 | 0.126572 | 0.1396099 |
| 1.28943 | 0.565481 | 0.148458 | 0.10243662 |
| 1.30783 | 0.305578 | 0.0601064 | 0.03915526 |
| 1.32623 | 0.108904 | 0.100684 | 0.01628651 |
