Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.45 — 1.5 GeV |
|

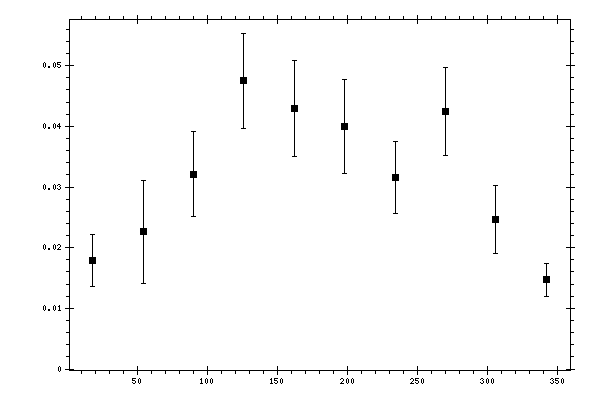

Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0178367 | 0.00431419 | 0.0060536 |
| 54 | 0.0226293 | 0.00851789 | 0.00356251 |
| 90 | 0.0320925 | 0.00698696 | 0.00468264 |
| 126 | 0.0475362 | 0.00782174 | 0.00653261 |
| 162 | 0.0429759 | 0.00791693 | 0.00434909 |
| 198 | 0.0400056 | 0.00772327 | 0.0054174 |
| 234 | 0.031576 | 0.00589573 | 0.00441182 |
| 270 | 0.0424743 | 0.00720966 | 0.00526562 |
| 306 | 0.0246615 | 0.00562661 | 0.00463742 |
| 342 | 0.0146845 | 0.00273116 | 0.00429463 |
