Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.45 — 1.5 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

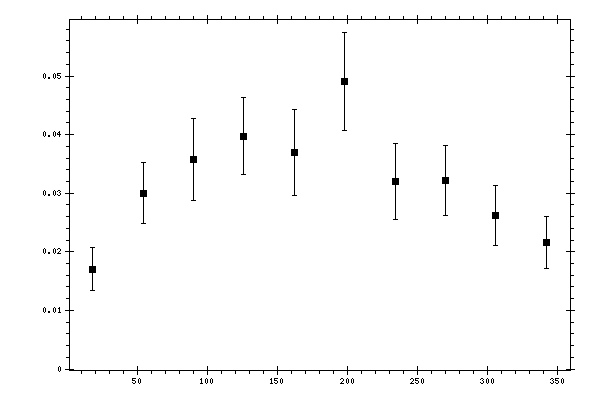

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0170562 | 0.00362989 | 0.00281878 |
| 54 | 0.0300446 | 0.0051384 | 0.00409733 |
| 90 | 0.0357962 | 0.00698225 | 0.00528307 |
| 126 | 0.039733 | 0.00654596 | 0.00514332 |
| 162 | 0.0369527 | 0.00727332 | 0.0058171 |
| 198 | 0.0490705 | 0.00830925 | 0.00585541 |
| 234 | 0.0320227 | 0.00653564 | 0.00536983 |
| 270 | 0.0321452 | 0.00597851 | 0.00387125 |
| 306 | 0.0262339 | 0.00511815 | 0.00437314 |
| 342 | 0.0215576 | 0.00443859 | 0.00333402 |
