Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.45 — 1.5 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

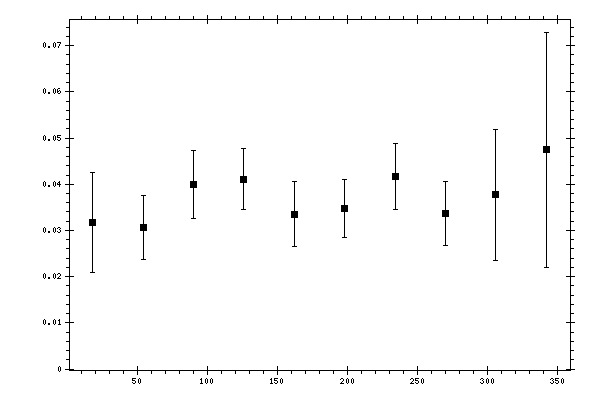

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0316514 | 0.010808 | 0.00697889 |
| 54 | 0.0306474 | 0.00691234 | 0.00349146 |
| 90 | 0.0399292 | 0.00740235 | 0.00470117 |
| 126 | 0.0410947 | 0.00664059 | 0.00478806 |
| 162 | 0.0335414 | 0.00701639 | 0.00441081 |
| 198 | 0.0348223 | 0.00630734 | 0.0043903 |
| 234 | 0.0416829 | 0.00719485 | 0.00615823 |
| 270 | 0.0337245 | 0.00690315 | 0.00487375 |
| 306 | 0.0377032 | 0.0142389 | 0.00773626 |
| 342 | 0.0474422 | 0.0255137 | 0.01811111 |
