Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.45 — 1.5 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

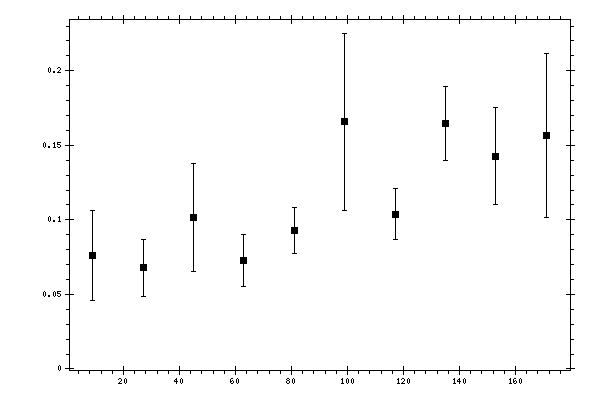

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.0762153 | 0.0300286 | 0.02809241 |
| 27 | 0.0677601 | 0.0192343 | 0.01609004 |
| 45 | 0.101577 | 0.0361712 | 0.02638817 |
| 63 | 0.0727842 | 0.0172742 | 0.01292987 |
| 81 | 0.0926654 | 0.0153653 | 0.01179555 |
| 99 | 0.165825 | 0.059277 | 0.04357126 |
| 117 | 0.103912 | 0.0168793 | 0.01238438 |
| 135 | 0.164754 | 0.0247658 | 0.01770708 |
| 153 | 0.142741 | 0.0326188 | 0.02086786 |
| 171 | 0.156727 | 0.0550002 | 0.0259691 |
