Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcbn/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.5 — 1.55 GeV |
|

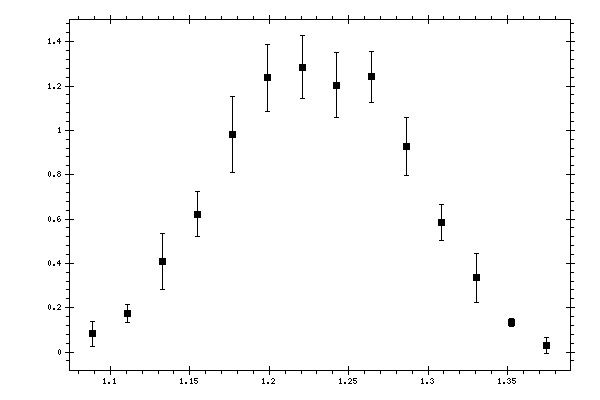

Observable quantity measured (Y axis): dσ/dM(π−,p), mcbn/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.08883 | 0.0817833 | 0.0581748 | 0.01681656 |
| 1.1108 | 0.173291 | 0.039965 | 0.03472836 |
| 1.13277 | 0.409318 | 0.126183 | 0.15604817 |
| 1.15474 | 0.621457 | 0.102406 | 0.2364744 |
| 1.17671 | 0.979855 | 0.17082 | 0.12750536 |
| 1.19868 | 1.23639 | 0.152069 | 0.15796384 |
| 1.22065 | 1.28424 | 0.142032 | 0.18341652 |
| 1.24262 | 1.20355 | 0.146716 | 0.17288572 |
| 1.26459 | 1.24073 | 0.114692 | 0.16521249 |
| 1.28656 | 0.92763 | 0.132643 | 0.12962309 |
| 1.30853 | 0.5848 | 0.0825763 | 0.09294628 |
| 1.3305 | 0.334209 | 0.109232 | 0.06084136 |
| 1.35247 | 0.133713 | 0.0167473 | 0.0474732 |
| 1.37444 | 0.0302895 | 0.0351872 | 0.01874278 |
