Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.5 — 1.55 GeV |
|

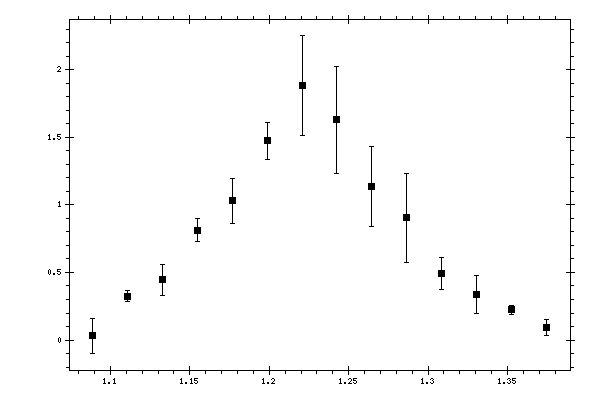

Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.08883 | 0.0325178 | 0.129312 | 0.01683354 |
| 1.1108 | 0.325586 | 0.0408663 | 0.06701177 |
| 1.13277 | 0.44476 | 0.11688 | 0.08040984 |
| 1.15474 | 0.812483 | 0.0864761 | 0.13602415 |
| 1.17671 | 1.03056 | 0.166457 | 0.12207617 |
| 1.19868 | 1.47343 | 0.139211 | 0.1697582 |
| 1.22065 | 1.88122 | 0.368556 | 0.25823394 |
| 1.24262 | 1.6292 | 0.396038 | 0.22414577 |
| 1.26459 | 1.13518 | 0.293328 | 0.14846957 |
| 1.28656 | 0.904158 | 0.328673 | 0.11882576 |
| 1.30853 | 0.490641 | 0.117014 | 0.06093865 |
| 1.3305 | 0.335179 | 0.141573 | 0.04220618 |
| 1.35247 | 0.222268 | 0.0366563 | 0.03610574 |
| 1.37444 | 0.0935757 | 0.0564945 | 0.01575083 |
