Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.5 — 1.55 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

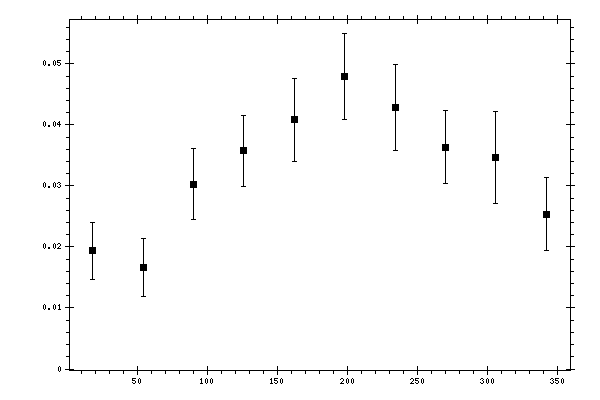

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0193615 | 0.00472047 | 0.00456275 |
| 54 | 0.0166233 | 0.00469516 | 0.00279443 |
| 90 | 0.030274 | 0.00583849 | 0.00436635 |
| 126 | 0.0357908 | 0.00581042 | 0.00430107 |
| 162 | 0.0408145 | 0.00675645 | 0.00458171 |
| 198 | 0.047978 | 0.0070563 | 0.0055448 |
| 234 | 0.0429094 | 0.00704834 | 0.00682135 |
| 270 | 0.0363531 | 0.0060051 | 0.00408757 |
| 306 | 0.0346667 | 0.00754085 | 0.00695887 |
| 342 | 0.0253423 | 0.00598368 | 0.00521346 |
