Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.5 — 1.55 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

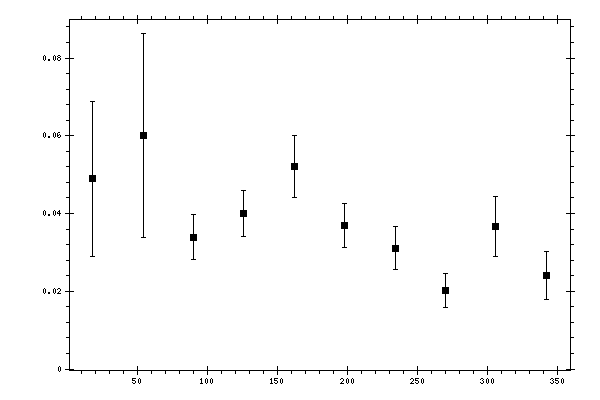

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0488929 | 0.0198562 | 0.00953442 |
| 54 | 0.0600619 | 0.0262031 | 0.01116895 |
| 90 | 0.033907 | 0.00576656 | 0.00463626 |
| 126 | 0.0400334 | 0.00586009 | 0.00483508 |
| 162 | 0.0521094 | 0.00787928 | 0.00641242 |
| 198 | 0.0369434 | 0.00566414 | 0.0041484 |
| 234 | 0.0310988 | 0.00550861 | 0.00402801 |
| 270 | 0.020221 | 0.00440703 | 0.00312274 |
| 306 | 0.0366434 | 0.00781158 | 0.00461817 |
| 342 | 0.0239897 | 0.00611453 | 0.00641293 |
