Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcbn/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.5 — 1.55 GeV |
|

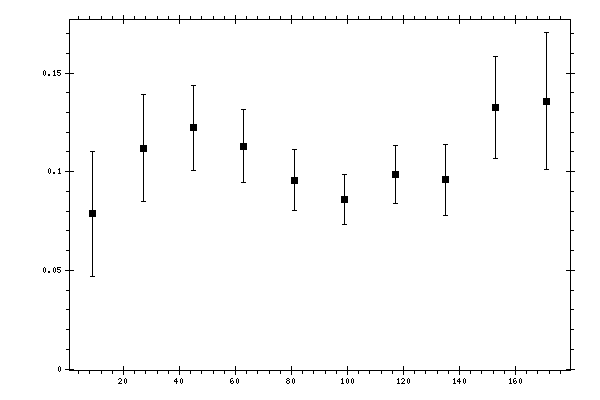

Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcbn/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.0787133 | 0.0316618 | 0.01724823 |
| 27 | 0.111832 | 0.0271188 | 0.01829307 |
| 45 | 0.12217 | 0.0216283 | 0.01890606 |
| 63 | 0.113022 | 0.0186306 | 0.01196911 |
| 81 | 0.0957698 | 0.0155547 | 0.01067642 |
| 99 | 0.0860276 | 0.0126116 | 0.01138611 |
| 117 | 0.0986641 | 0.0145653 | 0.01331089 |
| 135 | 0.0958339 | 0.0179901 | 0.01235335 |
| 153 | 0.132404 | 0.0257881 | 0.02047728 |
| 171 | 0.135788 | 0.0349189 | 0.02779714 |
