Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.5 — 1.55 GeV |
|

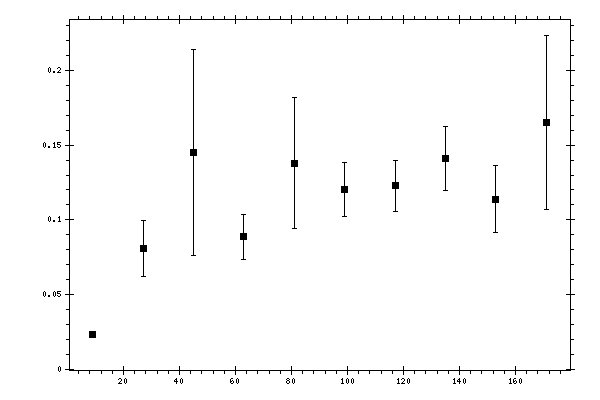

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.0229669 | 0.00155267 | 0.01692773 |
| 27 | 0.0809883 | 0.0187087 | 0.0196372 |
| 45 | 0.145053 | 0.0691843 | 0.03291211 |
| 63 | 0.0886913 | 0.0152029 | 0.01611873 |
| 81 | 0.137889 | 0.043901 | 0.01547799 |
| 99 | 0.120218 | 0.0179595 | 0.0144137 |
| 117 | 0.122694 | 0.0169928 | 0.01557867 |
| 135 | 0.140797 | 0.0214746 | 0.01545003 |
| 153 | 0.113903 | 0.0225029 | 0.01591819 |
| 171 | 0.165353 | 0.0584581 | 0.0377461 |
