Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcbn/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.55 — 1.6 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcbn/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

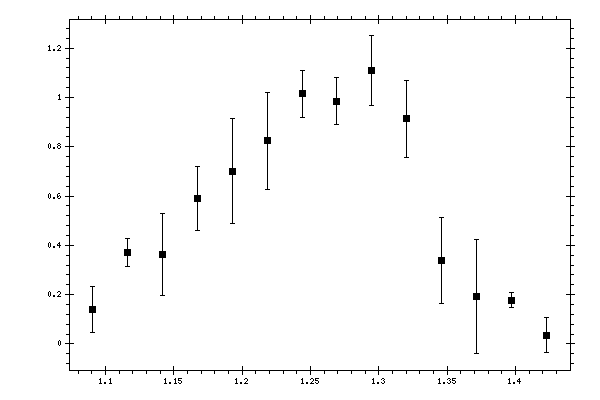

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.09061 | 0.140074 | 0.0937404 | 0.03042126 |
| 1.11615 | 0.371554 | 0.0575565 | 0.08028573 |
| 1.1417 | 0.363763 | 0.166331 | 0.04302251 |
| 1.16724 | 0.591284 | 0.130462 | 0.06897983 |
| 1.19278 | 0.700156 | 0.212792 | 0.08697913 |
| 1.21832 | 0.82425 | 0.19612 | 0.10174674 |
| 1.24386 | 1.01459 | 0.0945507 | 0.10561056 |
| 1.26941 | 0.984583 | 0.0959808 | 0.10309357 |
| 1.29495 | 1.10956 | 0.140653 | 0.13675566 |
| 1.32049 | 0.913685 | 0.154998 | 0.11678801 |
| 1.34603 | 0.340097 | 0.17386 | 0.07888642 |
| 1.37157 | 0.19343 | 0.230535 | 0.05379379 |
| 1.39712 | 0.178077 | 0.0317526 | 0.04652734 |
| 1.42266 | 0.0358376 | 0.0707806 | 0.0183085 |
