Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.55 — 1.6 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

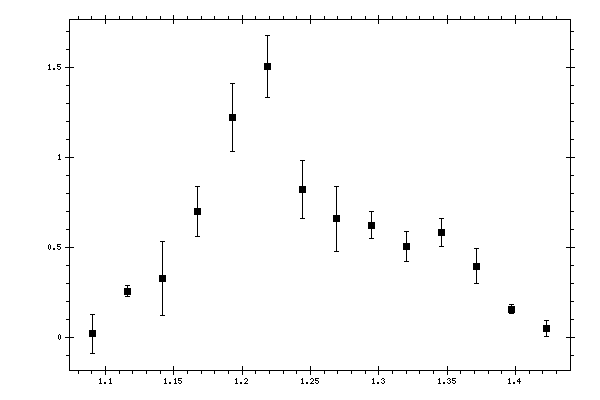

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.09061 | 0.0235435 | 0.108542 | 0.01445134 |
| 1.11615 | 0.260295 | 0.0326438 | 0.06262198 |
| 1.1417 | 0.330628 | 0.204462 | 0.0659589 |
| 1.16724 | 0.702803 | 0.140238 | 0.12454417 |
| 1.19278 | 1.22501 | 0.188598 | 0.12338528 |
| 1.21832 | 1.50824 | 0.16997 | 0.14920632 |
| 1.24386 | 0.823699 | 0.162904 | 0.10883707 |
| 1.26941 | 0.661063 | 0.181842 | 0.08839737 |
| 1.29495 | 0.62546 | 0.0757593 | 0.06300237 |
| 1.32049 | 0.508405 | 0.0840294 | 0.05166529 |
| 1.34603 | 0.585534 | 0.0803762 | 0.09025419 |
| 1.37157 | 0.398934 | 0.0973762 | 0.06170426 |
| 1.39712 | 0.159198 | 0.0260211 | 0.02114354 |
| 1.42266 | 0.051514 | 0.0457437 | 0.00743245 |
