Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.55 — 1.6 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

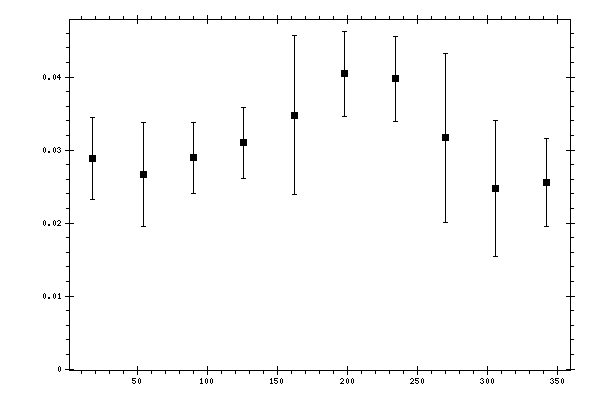

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0288653 | 0.00559883 | 0.0055218 |
| 54 | 0.026668 | 0.007162 | 0.00544984 |
| 90 | 0.028911 | 0.00480177 | 0.003693 |
| 126 | 0.0309648 | 0.00487711 | 0.0035225 |
| 162 | 0.0347908 | 0.0109239 | 0.00434949 |
| 198 | 0.0404666 | 0.0058085 | 0.00469693 |
| 234 | 0.0397654 | 0.00579724 | 0.00490768 |
| 270 | 0.0316884 | 0.0115911 | 0.00393988 |
| 306 | 0.0247869 | 0.00932695 | 0.00508092 |
| 342 | 0.0255436 | 0.0060676 | 0.00501128 |
