Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.55 — 1.6 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

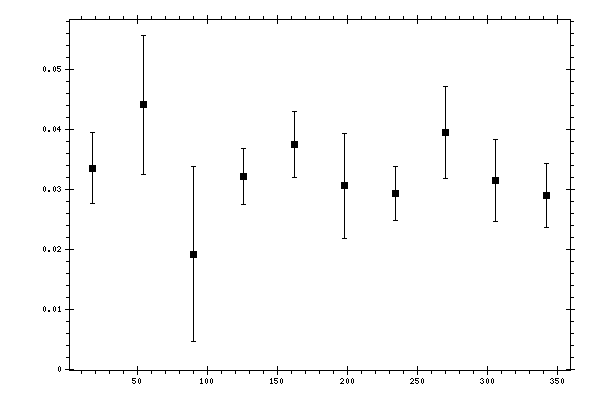

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0334675 | 0.00592743 | 0.00606882 |
| 54 | 0.0440242 | 0.0115905 | 0.00705396 |
| 90 | 0.0191553 | 0.0146431 | 0.00492569 |
| 126 | 0.0321204 | 0.0047096 | 0.0042224 |
| 162 | 0.0373963 | 0.00544336 | 0.00426762 |
| 198 | 0.0305263 | 0.0087332 | 0.00345248 |
| 234 | 0.0292399 | 0.00452799 | 0.0029166 |
| 270 | 0.0394442 | 0.00764427 | 0.00892735 |
| 306 | 0.031482 | 0.00681618 | 0.00450947 |
| 342 | 0.0289224 | 0.00527934 | 0.00712418 |
