Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcbn/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.55 — 1.6 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcbn/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.

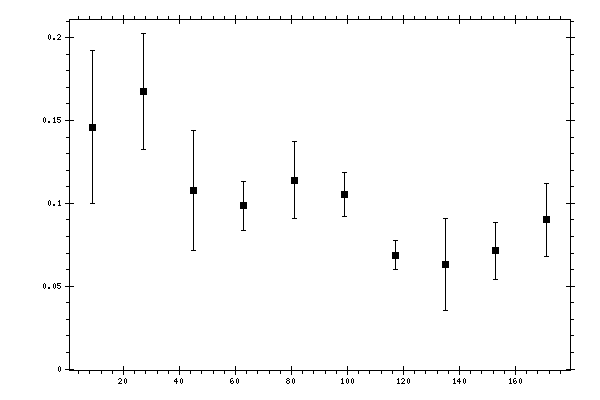

Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.145794 | 0.0461134 | 0.03347864 |
| 27 | 0.16722 | 0.0350224 | 0.02698958 |
| 45 | 0.107656 | 0.0360453 | 0.01604536 |
| 63 | 0.0984074 | 0.0149469 | 0.00975132 |
| 81 | 0.113974 | 0.0230991 | 0.01894183 |
| 99 | 0.105523 | 0.0132017 | 0.015712 |
| 117 | 0.0686792 | 0.00879688 | 0.0091209 |
| 135 | 0.0628426 | 0.027827 | 0.01147944 |
| 153 | 0.0713034 | 0.0173926 | 0.01655046 |
| 171 | 0.0899853 | 0.0219092 | 0.01442789 |
