Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcbn/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.55 — 1.6 GeV |
|

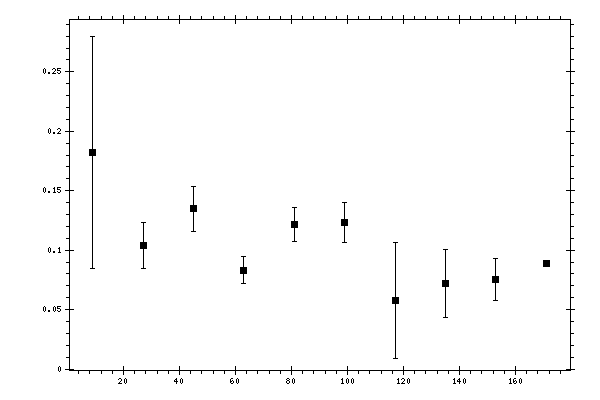

Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcbn/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.182406 | 0.0976281 | 0.02744072 |
| 27 | 0.103616 | 0.0194553 | 0.01023736 |
| 45 | 0.134955 | 0.018974 | 0.01253314 |
| 63 | 0.0829694 | 0.0113405 | 0.0106877 |
| 81 | 0.121568 | 0.0140624 | 0.01224795 |
| 99 | 0.123207 | 0.0169376 | 0.01653417 |
| 117 | 0.0577744 | 0.0485673 | 0.01186554 |
| 135 | 0.0717518 | 0.0287109 | 0.01942515 |
| 153 | 0.0751316 | 0.0174543 | 0.03539209 |
| 171 | 0.0891489 | 8.003e-05 | 0.05778625 |
