Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.55 — 1.6 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

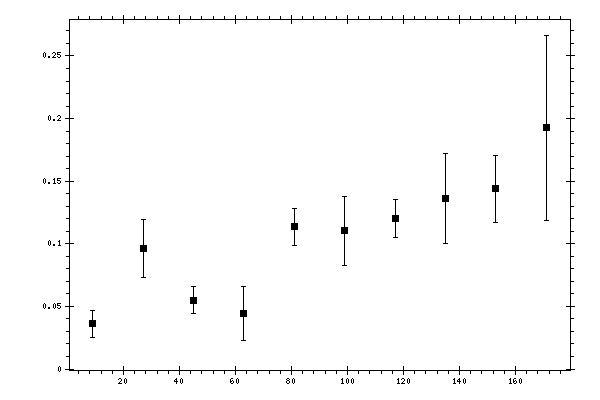

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.03598 | 0.0111355 | 0.01329791 |
| 27 | 0.0961249 | 0.0233993 | 0.0382744 |
| 45 | 0.0550445 | 0.0108546 | 0.0121172 |
| 63 | 0.0445113 | 0.0215049 | 0.01128016 |
| 81 | 0.113441 | 0.0146431 | 0.01656201 |
| 99 | 0.11042 | 0.027592 | 0.01214352 |
| 117 | 0.120205 | 0.0149633 | 0.01803864 |
| 135 | 0.136003 | 0.0361093 | 0.01727663 |
| 153 | 0.14406 | 0.0268371 | 0.01990744 |
| 171 | 0.192575 | 0.0739699 | 0.05359346 |
