Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcbn/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.6 — 1.65 GeV |
|

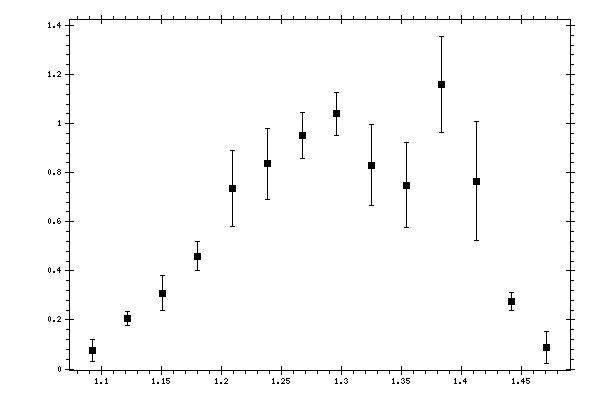

Observable quantity measured (Y axis): dσ/dM(π−,p), mcbn/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.0924 | 0.075577 | 0.0456116 | 0.00869336 |
| 1.12151 | 0.206808 | 0.0275732 | 0.02185741 |
| 1.15063 | 0.309692 | 0.0709193 | 0.03135076 |
| 1.17974 | 0.45962 | 0.0582144 | 0.04548242 |
| 1.20885 | 0.73695 | 0.154591 | 0.08580033 |
| 1.23797 | 0.836283 | 0.14512 | 0.09703187 |
| 1.26708 | 0.952896 | 0.0933531 | 0.0921934 |
| 1.29619 | 1.03951 | 0.0893793 | 0.09918649 |
| 1.32531 | 0.831458 | 0.164427 | 0.10754021 |
| 1.35442 | 0.749514 | 0.173182 | 0.09894608 |
| 1.38353 | 1.16013 | 0.195795 | 0.18946956 |
| 1.41265 | 0.766075 | 0.240945 | 0.12836079 |
| 1.44176 | 0.275669 | 0.0361138 | 0.04774221 |
| 1.47087 | 0.0867336 | 0.0643833 | 0.02478165 |
