Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.6 — 1.65 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

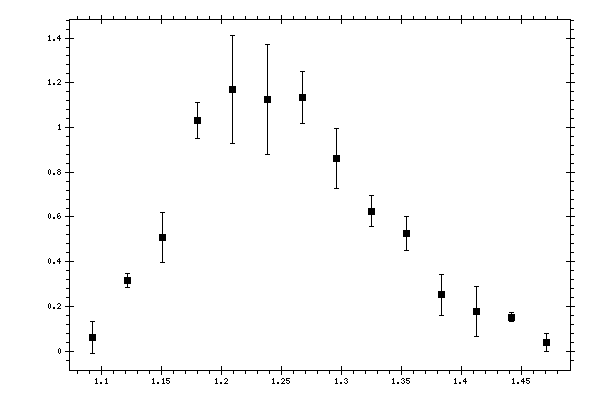

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.0924 | 0.0626273 | 0.0714503 | 0.01771737 |
| 1.12151 | 0.317363 | 0.0317401 | 0.04089536 |
| 1.15063 | 0.507799 | 0.112968 | 0.07205574 |
| 1.17974 | 1.03241 | 0.0792274 | 0.13028515 |
| 1.20885 | 1.17031 | 0.239593 | 0.14371522 |
| 1.23797 | 1.12495 | 0.244375 | 0.13853633 |
| 1.26708 | 1.13506 | 0.117044 | 0.09980189 |
| 1.29619 | 0.862004 | 0.134308 | 0.07661713 |
| 1.32531 | 0.625078 | 0.0694262 | 0.07126639 |
| 1.35442 | 0.526577 | 0.0756413 | 0.0601932 |
| 1.38353 | 0.251433 | 0.0931512 | 0.03765646 |
| 1.41265 | 0.178177 | 0.110656 | 0.02696897 |
| 1.44176 | 0.151437 | 0.0194944 | 0.01866931 |
| 1.47087 | 0.0390499 | 0.0383897 | 0.00589189 |
