Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.6 — 1.65 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

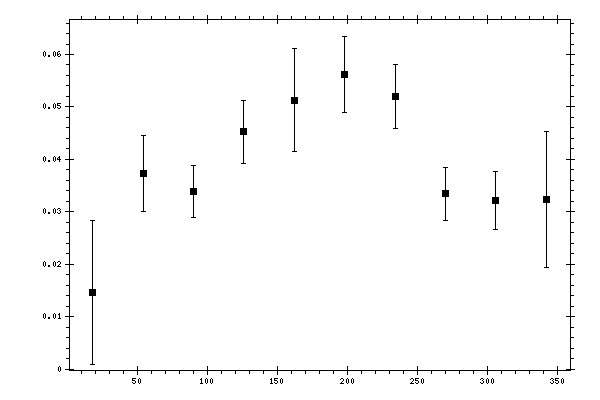

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.014556 | 0.0136917 | 0.00779403 |
| 54 | 0.037309 | 0.00719638 | 0.00422224 |
| 90 | 0.0338591 | 0.00490451 | 0.0036405 |
| 126 | 0.0452227 | 0.00608758 | 0.00412275 |
| 162 | 0.051237 | 0.00982551 | 0.00507291 |
| 198 | 0.0562153 | 0.0072376 | 0.00580937 |
| 234 | 0.0520075 | 0.00616215 | 0.00461069 |
| 270 | 0.0334561 | 0.0050774 | 0.00281202 |
| 306 | 0.0320925 | 0.005559 | 0.00409746 |
| 342 | 0.0323448 | 0.0130585 | 0.00694299 |
