Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcbn/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.6 — 1.65 GeV |
|

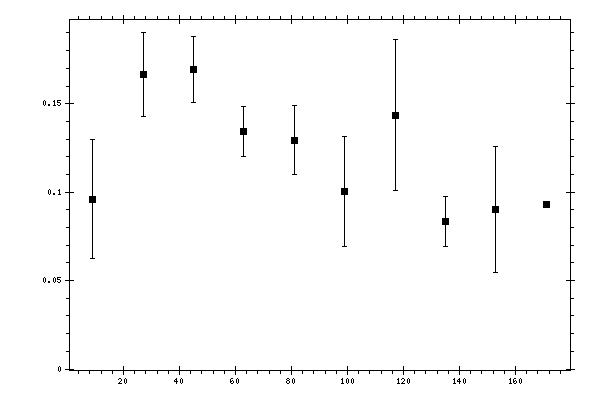

Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcbn/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.0960482 | 0.0335682 | 0.02370404 |
| 27 | 0.166756 | 0.023782 | 0.01526855 |
| 45 | 0.169411 | 0.0187661 | 0.01949566 |
| 63 | 0.134147 | 0.014232 | 0.01224679 |
| 81 | 0.129407 | 0.0193766 | 0.01273264 |
| 99 | 0.100574 | 0.0311411 | 0.01103141 |
| 117 | 0.143502 | 0.042601 | 0.02964838 |
| 135 | 0.0835795 | 0.0141591 | 0.01887253 |
| 153 | 0.0903611 | 0.0355513 | 0.03818508 |
| 171 | 0.0932879 | 8.401e-05 | 0.05636945 |
