Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.65 — 1.7 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

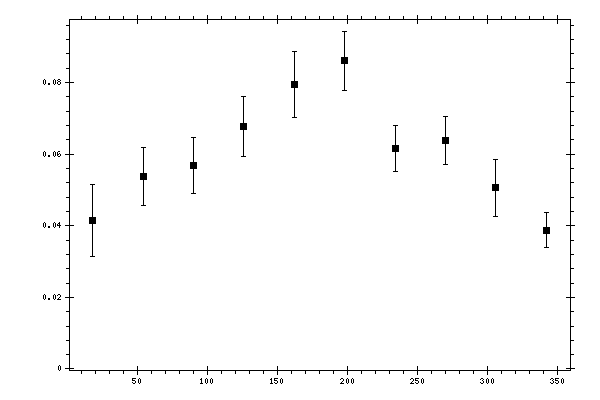

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0414188 | 0.0101195 | 0.01239808 |
| 54 | 0.0537699 | 0.00814517 | 0.00969607 |
| 90 | 0.056844 | 0.0077669 | 0.0063287 |
| 126 | 0.0677334 | 0.00836698 | 0.00797138 |
| 162 | 0.0794556 | 0.00913764 | 0.00806526 |
| 198 | 0.0860887 | 0.00822948 | 0.00706495 |
| 234 | 0.0616545 | 0.00645821 | 0.00625761 |
| 270 | 0.0638056 | 0.00659966 | 0.00678535 |
| 306 | 0.0506015 | 0.00791888 | 0.00542234 |
| 342 | 0.0388184 | 0.00492655 | 0.00780156 |
