Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.65 — 1.7 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

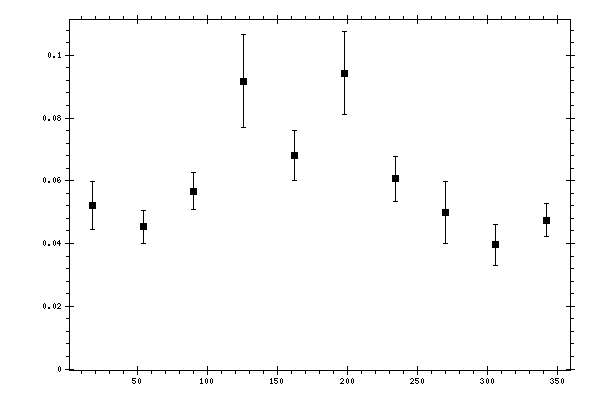

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0520064 | 0.00762804 | 0.00628776 |
| 54 | 0.0453467 | 0.00521341 | 0.00465115 |
| 90 | 0.0566762 | 0.00585442 | 0.00562397 |
| 126 | 0.0916878 | 0.0148456 | 0.013055 |
| 162 | 0.0679904 | 0.00789155 | 0.00767915 |
| 198 | 0.0942877 | 0.0132357 | 0.0111956 |
| 234 | 0.0606831 | 0.00716267 | 0.0066309 |
| 270 | 0.0499811 | 0.00993382 | 0.00847921 |
| 306 | 0.0395453 | 0.00640883 | 0.0044045 |
| 342 | 0.0474495 | 0.00532282 | 0.00593455 |
