Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcbn/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.65 — 1.7 GeV |
|

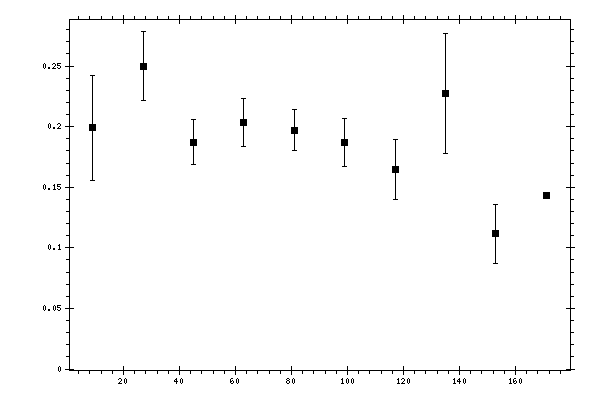

Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcbn/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.198952 | 0.0432758 | 0.04153628 |
| 27 | 0.249934 | 0.0285317 | 0.02582097 |
| 45 | 0.187038 | 0.0185203 | 0.0192162 |
| 63 | 0.203442 | 0.0199386 | 0.01899908 |
| 81 | 0.197029 | 0.0171098 | 0.01959557 |
| 99 | 0.186935 | 0.0197322 | 0.02001661 |
| 117 | 0.164541 | 0.0246754 | 0.02109461 |
| 135 | 0.227252 | 0.049585 | 0.03852003 |
| 153 | 0.111529 | 0.0241116 | 0.04754287 |
| 171 | 0.143315 | 0.00013038 | 0.07644383 |
