Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.65 — 1.7 GeV |
|

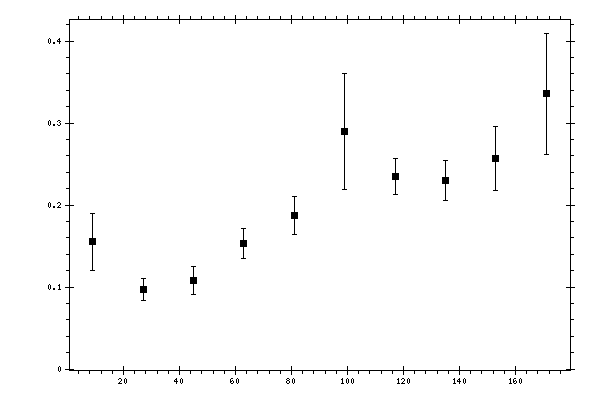

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.155402 | 0.0347956 | 0.02521372 |
| 27 | 0.0971061 | 0.0137517 | 0.01878179 |
| 45 | 0.107951 | 0.016806 | 0.01844416 |
| 63 | 0.153203 | 0.0181027 | 0.01693779 |
| 81 | 0.187276 | 0.0234814 | 0.02446369 |
| 99 | 0.28976 | 0.0709431 | 0.04877488 |
| 117 | 0.234611 | 0.0221501 | 0.03983962 |
| 135 | 0.230491 | 0.0244087 | 0.02481388 |
| 153 | 0.257138 | 0.0388212 | 0.03349538 |
| 171 | 0.335621 | 0.0738408 | 0.06137488 |
