Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcbn/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.7 — 1.75 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcbn/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

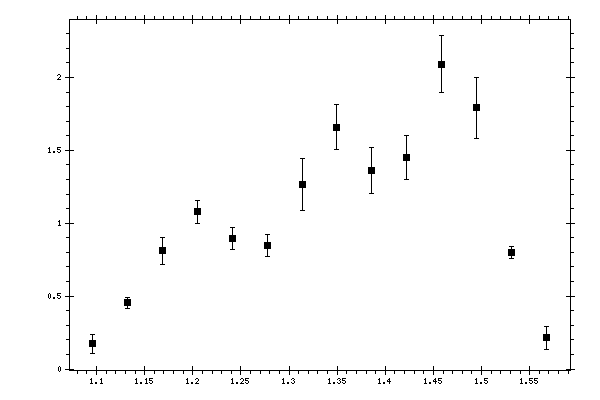

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.09597 | 0.172216 | 0.0625425 | 0.02166517 |
| 1.13223 | 0.455242 | 0.0384672 | 0.05536204 |
| 1.16848 | 0.81053 | 0.091023 | 0.07493302 |
| 1.20474 | 1.07724 | 0.0789551 | 0.09872652 |
| 1.241 | 0.896422 | 0.0748214 | 0.07885835 |
| 1.27725 | 0.845572 | 0.0770383 | 0.07462623 |
| 1.31351 | 1.26445 | 0.176604 | 0.12597923 |
| 1.34976 | 1.6575 | 0.15425 | 0.16364455 |
| 1.38602 | 1.36489 | 0.157827 | 0.16152202 |
| 1.42228 | 1.45229 | 0.153004 | 0.16978884 |
| 1.45853 | 2.09191 | 0.193545 | 0.23025243 |
| 1.49479 | 1.79351 | 0.209026 | 0.20390649 |
| 1.53105 | 0.802132 | 0.0410695 | 0.10145942 |
| 1.5673 | 0.214734 | 0.0793765 | 0.06939921 |
