Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.7 — 1.75 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

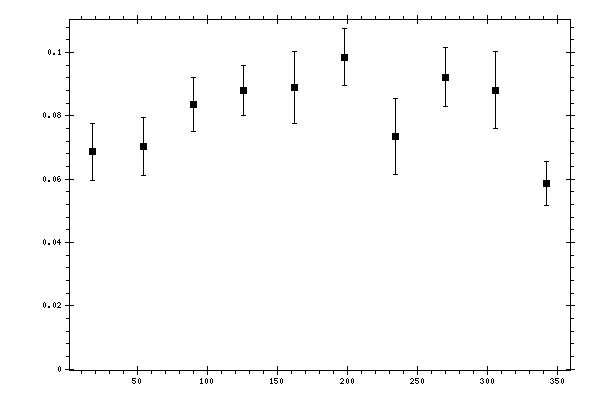

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.068615 | 0.00890886 | 0.02357217 |
| 54 | 0.0703739 | 0.00921718 | 0.00994251 |
| 90 | 0.0836107 | 0.0085285 | 0.00767163 |
| 126 | 0.088147 | 0.00791658 | 0.00713278 |
| 162 | 0.0889033 | 0.0113696 | 0.0074709 |
| 198 | 0.0984963 | 0.00900826 | 0.0090543 |
| 234 | 0.0733596 | 0.0119726 | 0.00808856 |
| 270 | 0.0921639 | 0.00933318 | 0.00977821 |
| 306 | 0.0881503 | 0.0122357 | 0.00986388 |
| 342 | 0.0587121 | 0.00688785 | 0.01121818 |
