Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.7 — 1.75 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

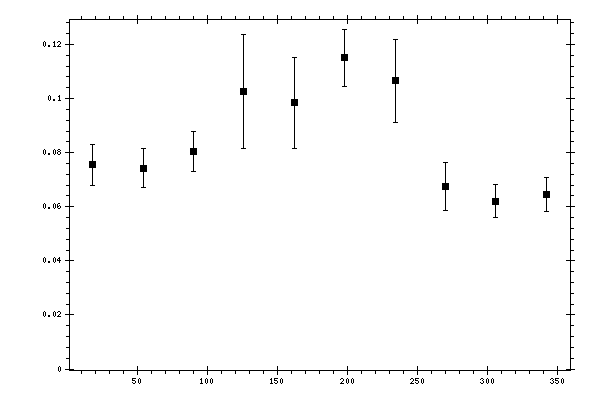

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0754564 | 0.00772021 | 0.00887921 |
| 54 | 0.0741993 | 0.00725882 | 0.00763379 |
| 90 | 0.0804863 | 0.00743881 | 0.00877604 |
| 126 | 0.102468 | 0.0210529 | 0.01187911 |
| 162 | 0.098413 | 0.0168279 | 0.01046774 |
| 198 | 0.115071 | 0.0105021 | 0.01102329 |
| 234 | 0.106568 | 0.0154386 | 0.01330655 |
| 270 | 0.0675992 | 0.00885952 | 0.00691474 |
| 306 | 0.0620507 | 0.00609117 | 0.00722632 |
| 342 | 0.0646145 | 0.00633877 | 0.00737459 |
