Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.7 — 1.75 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

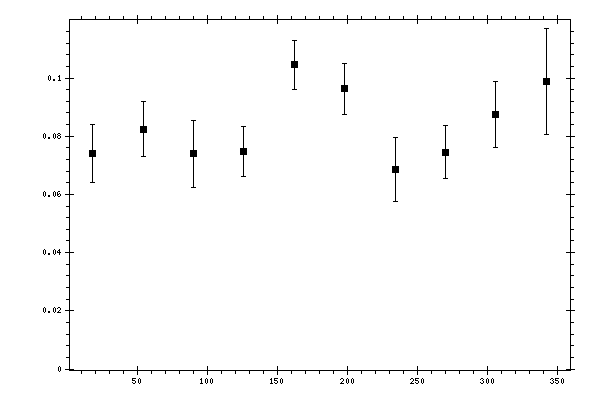

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0740858 | 0.0100624 | 0.01195723 |
| 54 | 0.0824071 | 0.00949795 | 0.01729079 |
| 90 | 0.0739243 | 0.0115924 | 0.00697608 |
| 126 | 0.0747351 | 0.00873681 | 0.00840477 |
| 162 | 0.104512 | 0.00828849 | 0.00982786 |
| 198 | 0.0962751 | 0.00884717 | 0.00876565 |
| 234 | 0.0685254 | 0.0111078 | 0.00801071 |
| 270 | 0.0745091 | 0.00903462 | 0.00812248 |
| 306 | 0.0874481 | 0.0112542 | 0.01090728 |
| 342 | 0.0987628 | 0.0181972 | 0.01266961 |
