Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.7 — 1.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

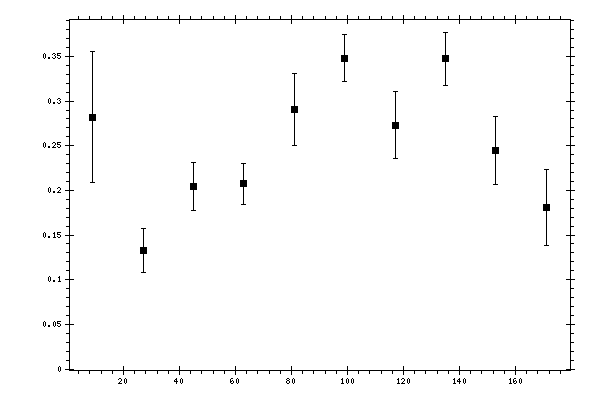

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.282157 | 0.0738093 | 0.05544686 |
| 27 | 0.132366 | 0.0245905 | 0.0229045 |
| 45 | 0.204642 | 0.0266672 | 0.02917958 |
| 63 | 0.20729 | 0.022795 | 0.02276012 |
| 81 | 0.291155 | 0.0403185 | 0.03123679 |
| 99 | 0.348219 | 0.0260799 | 0.03058667 |
| 117 | 0.273131 | 0.03715 | 0.03097463 |
| 135 | 0.34753 | 0.0298342 | 0.04891365 |
| 153 | 0.244556 | 0.0381402 | 0.03900582 |
| 171 | 0.181073 | 0.0427026 | 0.02298675 |
