Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.75 — 1.8 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

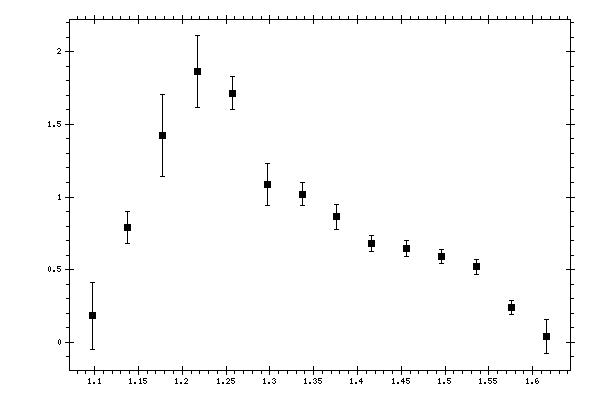

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.09776 | 0.182601 | 0.23108 | 0.0492627 |
| 1.13758 | 0.792611 | 0.110914 | 0.10986263 |
| 1.17741 | 1.42478 | 0.282042 | 0.20473418 |
| 1.21724 | 1.86208 | 0.246711 | 0.25935429 |
| 1.25707 | 1.71416 | 0.114735 | 0.14723025 |
| 1.29689 | 1.08682 | 0.144092 | 0.09637033 |
| 1.33672 | 1.01932 | 0.0790228 | 0.08454514 |
| 1.37655 | 0.86468 | 0.0857986 | 0.0718276 |
| 1.41638 | 0.679556 | 0.0531186 | 0.06220023 |
| 1.45621 | 0.64674 | 0.0544496 | 0.05921215 |
| 1.49603 | 0.592007 | 0.0500602 | 0.05540603 |
| 1.53586 | 0.518829 | 0.0534741 | 0.04859408 |
| 1.57569 | 0.240077 | 0.0468477 | 0.02699942 |
| 1.61552 | 0.0401955 | 0.114492 | 0.00493167 |
