Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.75 — 1.8 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

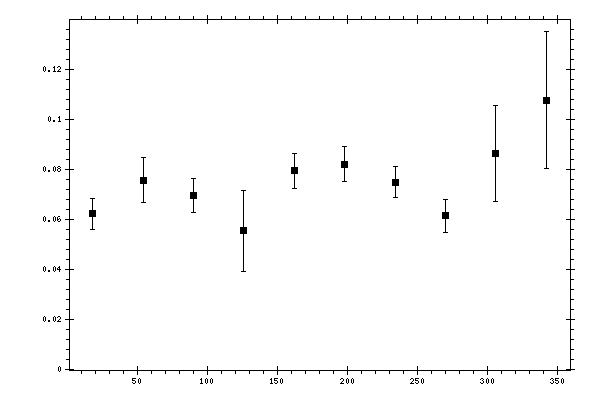

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0622439 | 0.00627936 | 0.00924438 |
| 54 | 0.0757351 | 0.00896734 | 0.00828948 |
| 90 | 0.0694806 | 0.00685684 | 0.00653291 |
| 126 | 0.0553463 | 0.0161475 | 0.00559586 |
| 162 | 0.0794077 | 0.00688106 | 0.00749388 |
| 198 | 0.0820306 | 0.00707477 | 0.00751011 |
| 234 | 0.0749305 | 0.00634205 | 0.00637731 |
| 270 | 0.0613861 | 0.00669398 | 0.00512173 |
| 306 | 0.0863718 | 0.0193728 | 0.01097847 |
| 342 | 0.107628 | 0.027456 | 0.02732788 |
