Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.75 — 1.8 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

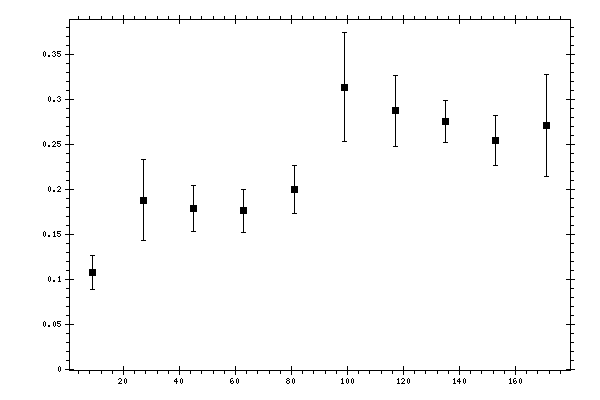

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.107019 | 0.0189199 | 0.02486587 |
| 27 | 0.187964 | 0.0454091 | 0.03392245 |
| 45 | 0.178626 | 0.0256614 | 0.02335941 |
| 63 | 0.175893 | 0.0239439 | 0.0204603 |
| 81 | 0.199686 | 0.0264902 | 0.01917032 |
| 99 | 0.313395 | 0.0606072 | 0.05758678 |
| 117 | 0.287289 | 0.039531 | 0.02736643 |
| 135 | 0.275674 | 0.0232074 | 0.02380376 |
| 153 | 0.254586 | 0.0279071 | 0.02207029 |
| 171 | 0.270919 | 0.0570148 | 0.04180171 |
