Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.8 — 1.85 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

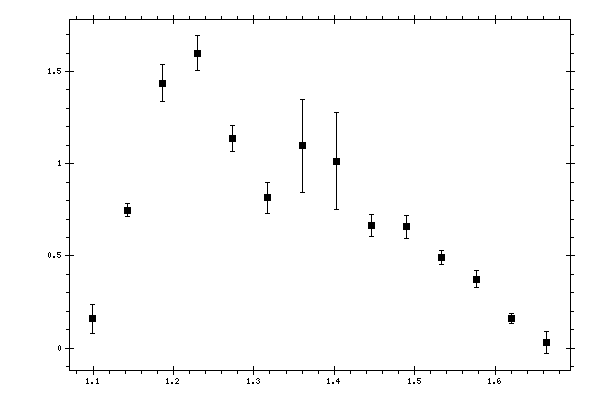

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.09954 | 0.158538 | 0.0800113 | 0.06403767 |
| 1.14294 | 0.749166 | 0.0368069 | 0.2098037 |
| 1.18634 | 1.43764 | 0.099958 | 0.14476565 |
| 1.22974 | 1.59845 | 0.0947967 | 0.15778107 |
| 1.27314 | 1.1359 | 0.0703369 | 0.10867928 |
| 1.31654 | 0.815621 | 0.0830062 | 0.07910357 |
| 1.35994 | 1.0971 | 0.252994 | 0.27302196 |
| 1.40334 | 1.01357 | 0.263214 | 0.25224787 |
| 1.44673 | 0.665672 | 0.0605868 | 0.05969099 |
| 1.49013 | 0.657213 | 0.0609755 | 0.05893537 |
| 1.53353 | 0.49357 | 0.0388988 | 0.04693754 |
| 1.57693 | 0.375159 | 0.0446172 | 0.03574547 |
| 1.62033 | 0.162089 | 0.0271352 | 0.02329556 |
| 1.66373 | 0.0333127 | 0.0598554 | 0.00505398 |
