Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.8 — 1.85 GeV |
|

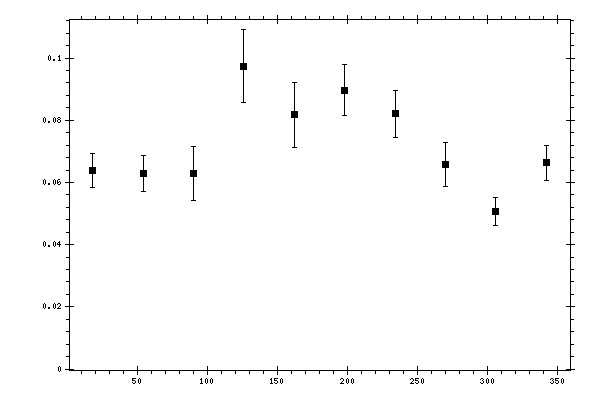

Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0638326 | 0.00544184 | 0.00698307 |
| 54 | 0.0628336 | 0.005874 | 0.00646872 |
| 90 | 0.0629563 | 0.00863493 | 0.00633157 |
| 126 | 0.0973718 | 0.0117279 | 0.00825271 |
| 162 | 0.0817579 | 0.0105352 | 0.01022938 |
| 198 | 0.0896404 | 0.00817868 | 0.0086422 |
| 234 | 0.082103 | 0.00750179 | 0.00690053 |
| 270 | 0.065817 | 0.00701088 | 0.0067917 |
| 306 | 0.0506566 | 0.00461009 | 0.00517407 |
| 342 | 0.0663023 | 0.00560531 | 0.00851502 |
