Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.8 — 1.85 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

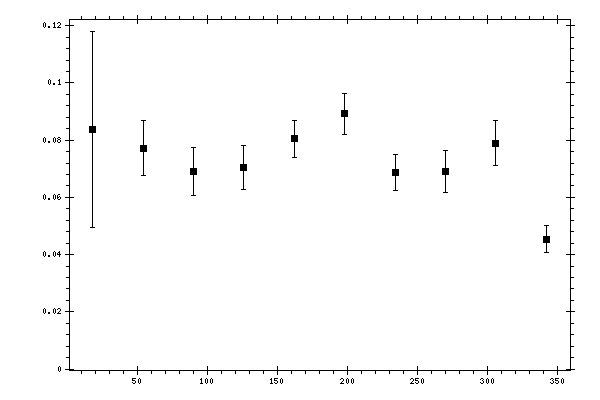

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0838607 | 0.034283 | 0.03690381 |
| 54 | 0.0772566 | 0.00955094 | 0.01803402 |
| 90 | 0.0690237 | 0.00845025 | 0.00767947 |
| 126 | 0.0704094 | 0.00759671 | 0.00673777 |
| 162 | 0.0804731 | 0.00648123 | 0.00818601 |
| 198 | 0.0893052 | 0.00717729 | 0.00815226 |
| 234 | 0.0687312 | 0.00622105 | 0.00546711 |
| 270 | 0.0689512 | 0.00728006 | 0.00592664 |
| 306 | 0.0788862 | 0.00791179 | 0.00763407 |
| 342 | 0.0453951 | 0.00475292 | 0.00914198 |
