Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.8 — 1.85 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

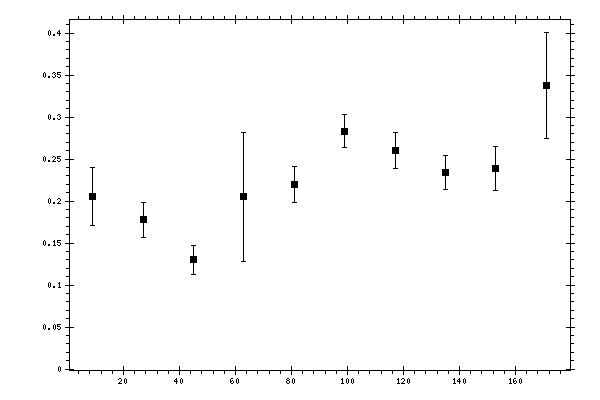

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.205432 | 0.0348342 | 0.03601067 |
| 27 | 0.177512 | 0.0210478 | 0.02562656 |
| 45 | 0.129821 | 0.0172703 | 0.01782953 |
| 63 | 0.205353 | 0.0767816 | 0.08373836 |
| 81 | 0.219675 | 0.0218543 | 0.02118128 |
| 99 | 0.282786 | 0.0196445 | 0.04387012 |
| 117 | 0.260113 | 0.0212681 | 0.02118445 |
| 135 | 0.234173 | 0.0204594 | 0.02541145 |
| 153 | 0.238841 | 0.0261618 | 0.02200347 |
| 171 | 0.338057 | 0.0630523 | 0.0434739 |
