Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.85 — 1.9 GeV |
|

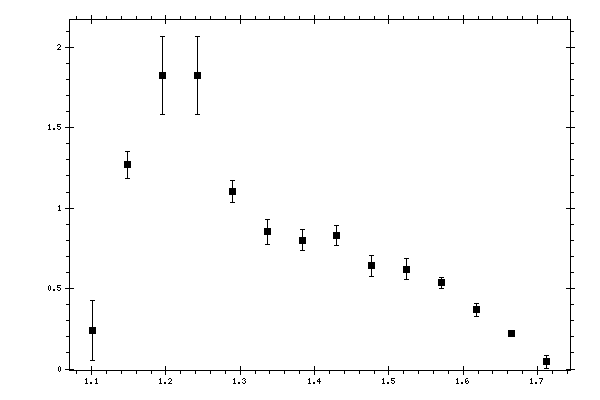

Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.10133 | 0.240599 | 0.187341 | 0.05072591 |
| 1.1483 | 1.26856 | 0.0815874 | 0.14750284 |
| 1.19527 | 1.82263 | 0.242603 | 0.20824921 |
| 1.24224 | 1.82404 | 0.242509 | 0.20840643 |
| 1.28921 | 1.104 | 0.0693382 | 0.11072959 |
| 1.33618 | 0.853081 | 0.0788792 | 0.08585311 |
| 1.38315 | 0.801382 | 0.063743 | 0.10802263 |
| 1.43012 | 0.831426 | 0.0625807 | 0.11206752 |
| 1.47709 | 0.642376 | 0.066005 | 0.06153874 |
| 1.52406 | 0.620703 | 0.0671474 | 0.05946572 |
| 1.57103 | 0.536578 | 0.0348483 | 0.0503938 |
| 1.618 | 0.367059 | 0.0421337 | 0.03454694 |
| 1.66497 | 0.218634 | 0.0177065 | 0.0289839 |
| 1.71194 | 0.0449464 | 0.0390522 | 0.00617399 |
