Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.85 — 1.9 GeV |
|

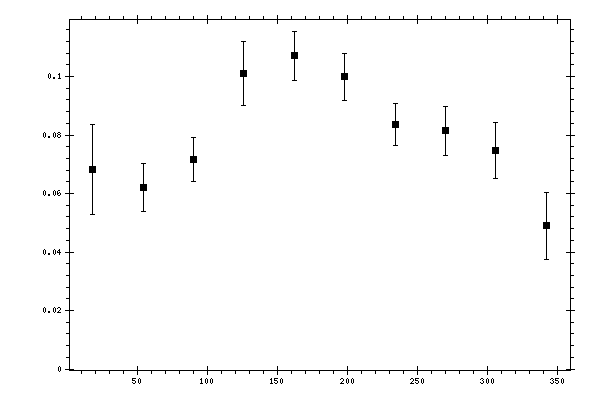

Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0682567 | 0.0155102 | 0.0103081 |
| 54 | 0.0621285 | 0.00823877 | 0.00670043 |
| 90 | 0.0717168 | 0.00754649 | 0.00695647 |
| 126 | 0.101121 | 0.0110072 | 0.00962441 |
| 162 | 0.107035 | 0.0084049 | 0.00896116 |
| 198 | 0.0998597 | 0.00806197 | 0.00818326 |
| 234 | 0.0837362 | 0.0071501 | 0.00800324 |
| 270 | 0.081449 | 0.00840539 | 0.00884059 |
| 306 | 0.0747363 | 0.00950445 | 0.00783446 |
| 342 | 0.0489345 | 0.0113915 | 0.00767 |
