Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.85 — 1.9 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.

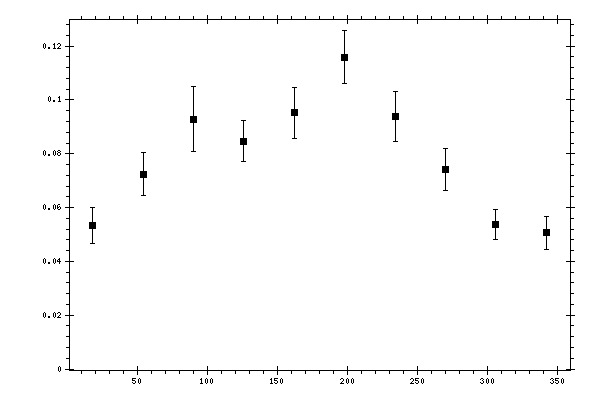

Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0532655 | 0.0067754 | 0.007516 |
| 54 | 0.0724403 | 0.00808851 | 0.00805792 |
| 90 | 0.0929114 | 0.0119306 | 0.0113392 |
| 126 | 0.084744 | 0.00747035 | 0.00794298 |
| 162 | 0.0951697 | 0.00952522 | 0.01009227 |
| 198 | 0.11584 | 0.0098325 | 0.01258421 |
| 234 | 0.0937593 | 0.00925231 | 0.00871946 |
| 270 | 0.0741845 | 0.00795929 | 0.00653155 |
| 306 | 0.0535848 | 0.00555329 | 0.00645769 |
| 342 | 0.0505947 | 0.00602048 | 0.00553763 |
