Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.85 — 1.9 GeV |
|

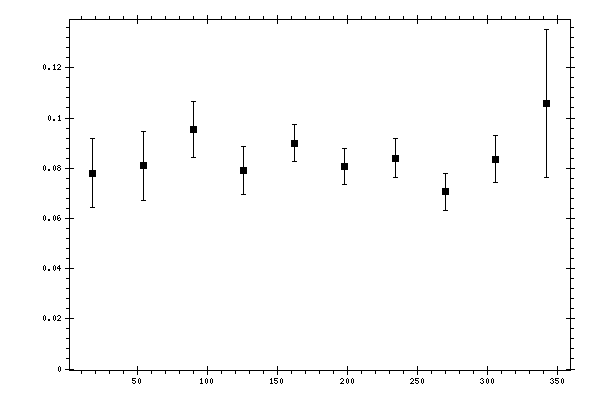

Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0780592 | 0.0138891 | 0.00863442 |
| 54 | 0.0810342 | 0.0137007 | 0.0138088 |
| 90 | 0.0954951 | 0.0112756 | 0.01556162 |
| 126 | 0.0790686 | 0.0094384 | 0.00706961 |
| 162 | 0.0899997 | 0.00739828 | 0.00873172 |
| 198 | 0.0806076 | 0.00727975 | 0.00678854 |
| 234 | 0.0840469 | 0.00770655 | 0.00758289 |
| 270 | 0.0705379 | 0.00720047 | 0.00606948 |
| 306 | 0.0836563 | 0.00942271 | 0.00812042 |
| 342 | 0.105804 | 0.0296526 | 0.02907535 |
