Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.9 — 1.95 GeV |
|

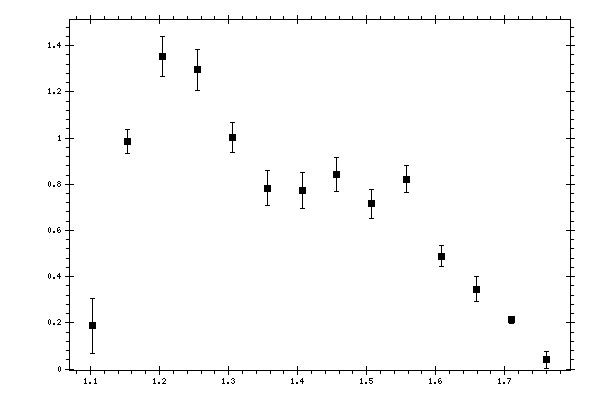

Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.10311 | 0.186839 | 0.117756 | 0.05082503 |
| 1.15365 | 0.984866 | 0.0512894 | 0.13477758 |
| 1.2042 | 1.35334 | 0.0861601 | 0.10810264 |
| 1.25474 | 1.29486 | 0.0880845 | 0.10402246 |
| 1.30528 | 1.0027 | 0.0664677 | 0.08685404 |
| 1.35582 | 0.783623 | 0.0751868 | 0.06810518 |
| 1.40636 | 0.773478 | 0.077363 | 0.07146735 |
| 1.45691 | 0.84114 | 0.0741862 | 0.07770477 |
| 1.50745 | 0.714849 | 0.062177 | 0.06933049 |
| 1.55799 | 0.822277 | 0.0579733 | 0.07973784 |
| 1.60853 | 0.487502 | 0.0456986 | 0.04399532 |
| 1.65907 | 0.346099 | 0.0542364 | 0.03129033 |
| 1.70962 | 0.213059 | 0.0163181 | 0.02267262 |
| 1.76016 | 0.0401183 | 0.0376051 | 0.00449081 |
