Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.9 — 1.95 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

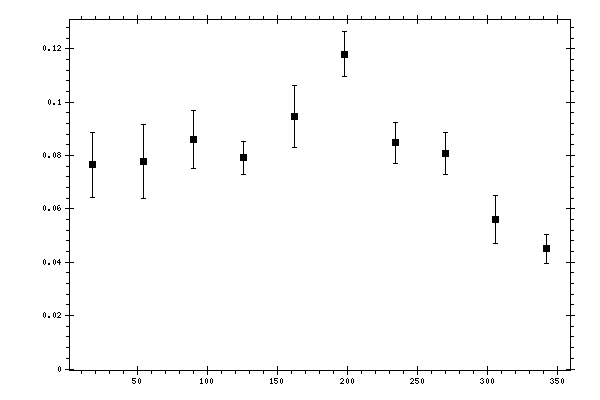

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0764811 | 0.0120679 | 0.0083607 |
| 54 | 0.0776571 | 0.0138724 | 0.03902291 |
| 90 | 0.0860472 | 0.010725 | 0.01080228 |
| 126 | 0.079203 | 0.00624881 | 0.00771774 |
| 162 | 0.094785 | 0.011601 | 0.00852831 |
| 198 | 0.117994 | 0.00850613 | 0.01021261 |
| 234 | 0.0848025 | 0.00770594 | 0.00848203 |
| 270 | 0.0807997 | 0.00777937 | 0.00679671 |
| 306 | 0.0560137 | 0.00902764 | 0.00695731 |
| 342 | 0.0451134 | 0.00539515 | 0.00935051 |
