Parameter (X axis): ψ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π+), mcbn/rad
Differential cross section, where ψ(π+) is out-of-plane angle of p and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.9 — 1.95 GeV |
|

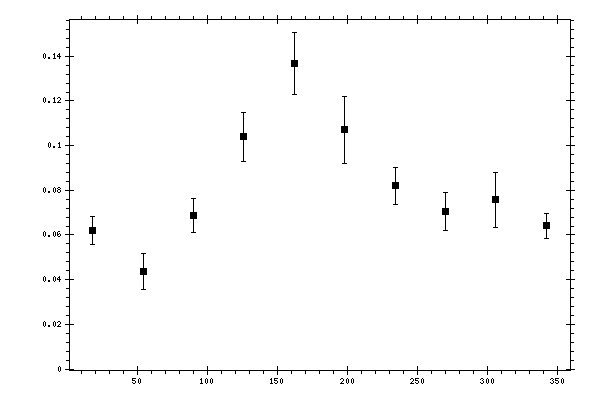

Observable quantity measured (Y axis): dσ/dψ(π+), mcbn/rad
Parameter (X axis): ψ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
ψ(π+),
deg |
dσ/dψ(π+),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0619122 | 0.00614845 | 0.00839877 |
| 54 | 0.0437098 | 0.00799236 | 0.00498651 |
| 90 | 0.0687465 | 0.00772769 | 0.00721434 |
| 126 | 0.103993 | 0.0109234 | 0.00993003 |
| 162 | 0.136687 | 0.0138062 | 0.01250966 |
| 198 | 0.107144 | 0.0150362 | 0.0103899 |
| 234 | 0.0819601 | 0.00826342 | 0.01666629 |
| 270 | 0.0703837 | 0.00858172 | 0.00715124 |
| 306 | 0.0756641 | 0.0122365 | 0.00870172 |
| 342 | 0.0640786 | 0.00558216 | 0.00698114 |
